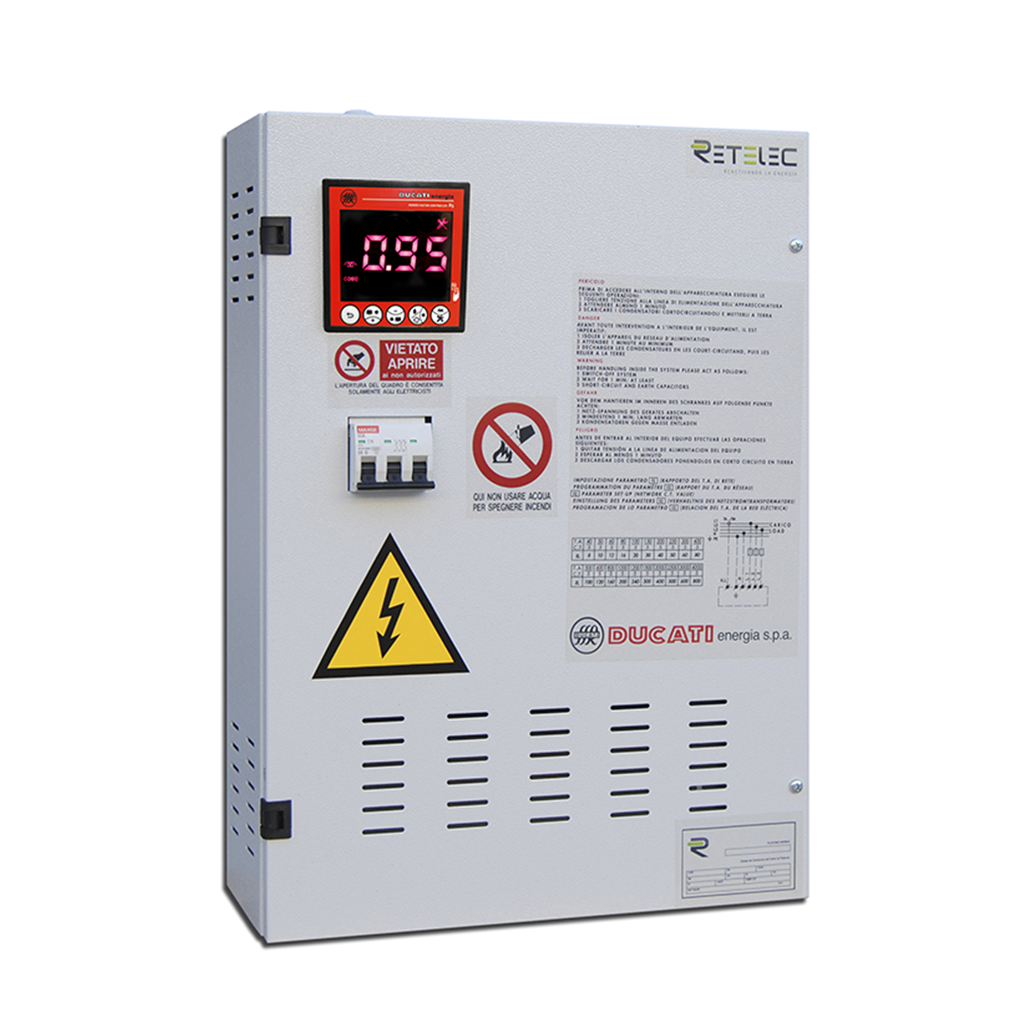

Automatic self-regulating battery CONCEPT Series up to 80 kVAr wall-mounted.

7,5 a 450V - 5,9 a 400V. Electrical steps:3. Steps: 2,5 + 5.

10 a 450V - 7,9 a 400V. Electrical steps: 4. Steps: 2x2,5 + 5.

12.5 a 450V - 9.9 a 400V. Electrical steps: 5. Steps: 2.5 + 2x5.

15 a 450V - 11.9 a 400V. Electrical steps: 3. Steps: 5 + 10.

17.5 a 450V - 13.8 a 400V. Electrical steps: 7. Steps: 2.5 + 5 +10.

20 a 450V - 15.8 a 400V. Electrical steps: 4. Steps: 2x5 + 10.

25 a 450V - 19.8 a 400V. Electrical steps: 5. Steps: 5 + 2x10.

30 a 450V - 23.7 a 400V. Electrical steps: 4. Steps: 2x7.5 + 15.

35 a 450V - 27.7 a 400V. Electrical steps: 7. Steps: 5 + 10 + 20.

37.5 a 450V - 29.6 a 400V. Electrical steps: 5. Steps: 7.5 + 2x15.

40 a 450V - 31.6 a 400V. Electrical steps: 8. Steps: 2x5 + 10 + 20.

45 a 450V - 35.6 a 400V. Electrical steps: 9. Steps: 5 + 2x10 + 20.

50 a 450V - 39.5 a 400V. Electrical steps: 5. Steps: 10 + 2x20.

55 a 450V - 43.5 a 400V. Electrical steps: 11. Steps: 5 + 10 + 2x20.

60 a 450V - 47.4 a 400V. Electrical steps: 6. Steps: 2x10 + 2x20.

70 a 450V - 55.3 a 400V. Electrical steps: 7. Steps: 10 + 3x20.

80 a 450V - 63.2 a 400V. Electrical steps: 4. Steps: 4x20.
