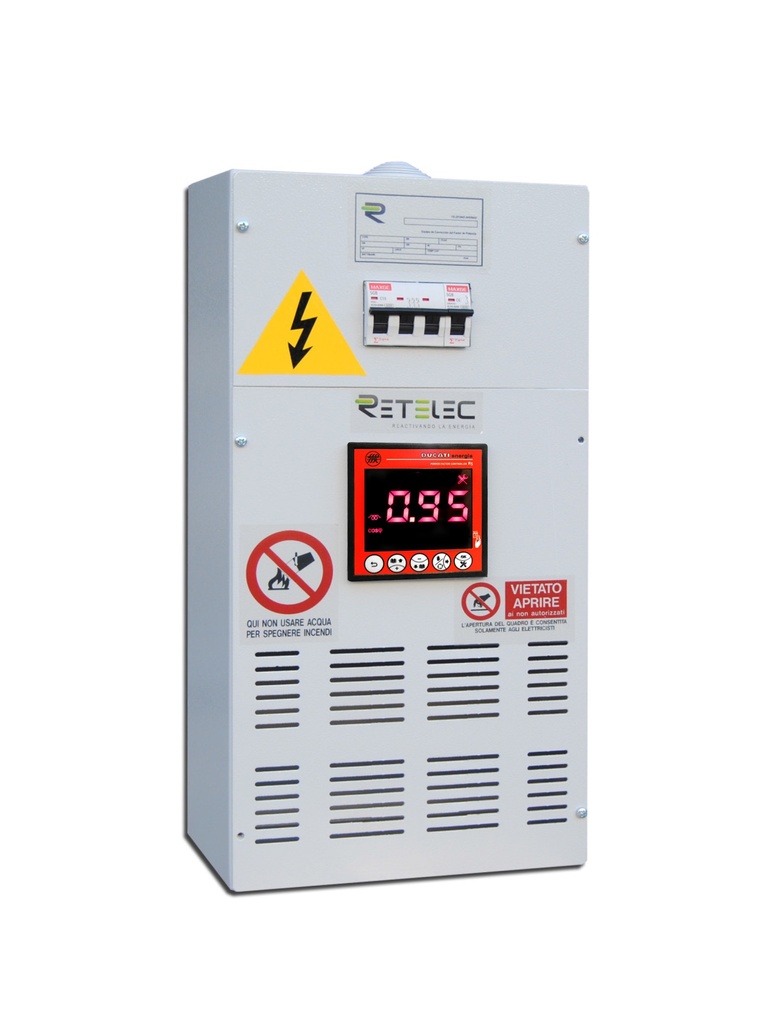

Basic systems ECO series wall-mounted up to 40 kVAr.

3 a 450V - 2,4 a 400V. 2 Steps. Steps 1,5 + 1,5. (500x250x150mm)

5 a 450V - 4 a 400V. 2 Steps. Steps 2,5 + 2,5. (500x250x150mm)

7,5 a 450V - 5,9 a 400V. 3 Steps. Steps 2,5 + 5. (500x250x150mm)

10 a 450V - 7,9 a 400V. 2 Steps. Steps 5 + 5. (500x250x150mm)

12,5 a 450V - 9,9 a 400V. 3 Steps. Steps 5 + 7,5. (500x250x150mm)

15 a 450V - 11,9 a 400V. 3 Steps. Steps 5 + 10. (500x250x150mm)

17,5 a 450V - 13,8 a 400V. 3 Steps. Steps 7,5 + 10. (500x250x150 mm)

20 a 450V - 15,8 a 400V. 2 Steps. Steps 10 + 10. (500x250x150mm)

25 a 450V - 19,8 a 400V. 3 Steps. Steps 10 + 15. (500x250x150mm)

30 a 450V - 23,7 a 400V. 3 Steps. Steps 10 + 20. (500x250x150mm)

35 a 450V - 27,7 a 400V. 3 Steps. Steps 15 + 20. (500x250x150mm)

40 a 450V - 31,6 a 400V. 2 Steps. Steps 20 + 20. (500x250x150mm)
